As with previous releases, the system C drive frequently runs out of space in Windows Server 2019 environments. When this capacity blockage occurs, you should choose to expand the C drive volume before it fills up completely. Otherwise, you will encounter severe system stability issues like unexpected server restarts or sudden hangs. To safely extend partition boundaries in Windows Server 2019/2022, Microsoft provides an integrated command-line utility known as diskpart. Unlike the graphical Disk Management console snap-in, this tool executes volume adjustments directly through the terminal. This article introduces how to run the diskpart extend volume command in Windows Server 2019/2022 and explains its major operational limitations.
How to extend C drive with diskpart in Windows Server 2019/2022
To expand storage boundaries using Diskpart in Windows Server 2019/2022 and alternative versions, your active disk layout must satisfy all of the following requirements:
- The targeted partition must be formatted with the NTFS file system architecture, which is standard for primary system volumes.
- A contiguous partition layout block (such as drive D:) must reside directly adjacent and to the right side of the C drive.
- You must completely delete this adjacent data partition before running the extension routine on your primary drive. Do not perform this task if installed application services currently reside on that volume.
Steps to extend C drive with diskpart in Windows Server 2019/2022:
- Press Windows and R together on your keyboard, type diskpart, and press Enter to initialize the command-line console.
- Type list volume within the diskpart.exe prompt window and press Enter.
- Type select volume D and press Enter, replacing D with the specific drive letter or index number of your adjacent data volume.
- Type delete volume and press Enter to clear the adjacent sector container.
- Type select volume C and press Enter to shift focus onto your system partition.
- Type extend and press Enter to finalize the capacity reallocation.

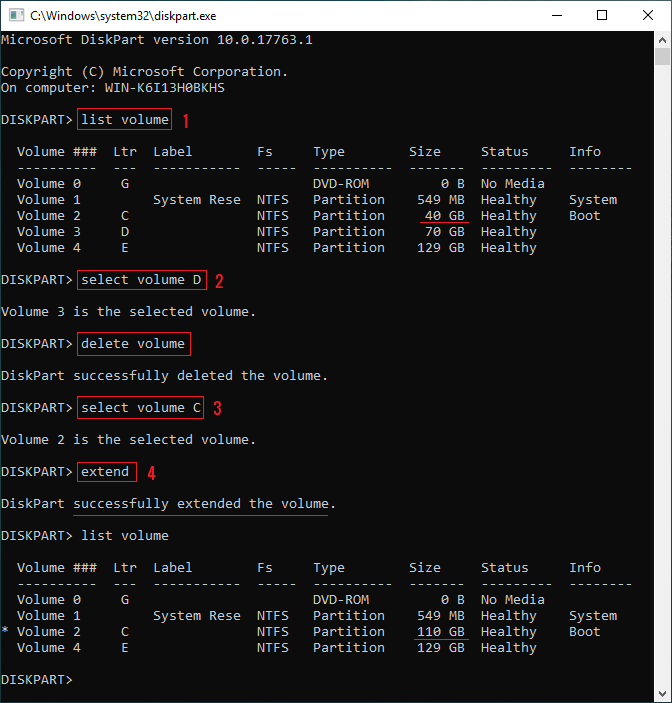

Immediately, the console reports that the partition volume has been extended successfully. Running the list volume command once more shows that the system partition has scaled from 40GB to 110GB.
- Step 2 is not strictly mandatory, but it provides a detailed view of the initial partition parameters and layout structure for reference.
- Before executing any shrink, delete, or extend boundaries commands, you must explicitly choose the partition to assign operational focus.
- To add only a specific portion of the available unallocated space to your primary partition, type extend size=XX (where XX represents the raw capacity in megabytes) during Step 6.
Limitations of the diskpart extend volume command
1. Unallocated space must be contiguous and on the right side

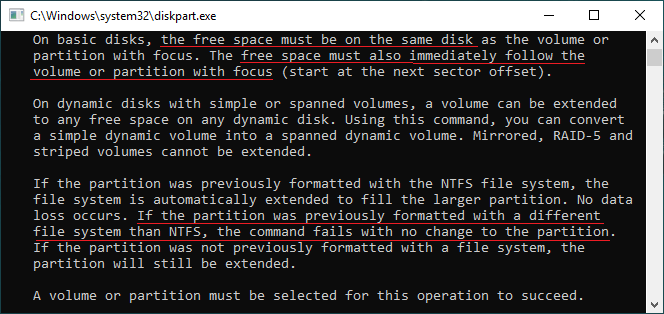

If you query the help extend command inside the interactive prompt, the tool lists the explicit constraints governing the extension engine.

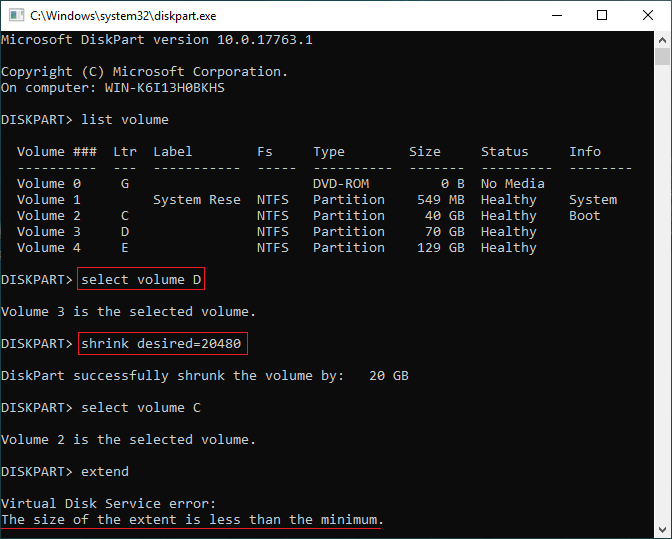

The unallocated sector block must reside on the exact same physical disk layout and immediately follow the focused partition boundary. If you shrink drive D and attempt to expand the system volume using native command lines, the utility returns an error message indicating that the size of the extend is less than the minimum. This alert message is historically misleading; the system simply intends to report that there is no contiguous free space available next to the targeted partition block.
When you reduce volume boundaries using the native shrink mechanism, unallocated block space is generated exclusively on the right edge of that specific drive. The shrink component cannot produce unallocated space on the left boundary of a partition. Because the resulting block remains non-adjacent to your primary drive, you are required to delete the right contiguous data drive entirely before running a volume extension routine.
2. Only NTFS partitions can be extended
As shown in the terminal documentation notes above, the built-in controller exclusively supports NTFS file tracking architectures. FAT32 volumes and alternative partition formatting styles cannot be expanded using native command lines.
3. Lack of visual disk layout information
The terminal interface only presents partition properties as a basic text-based index list. If you run the alternative native Disk Management console to resize partition structures, you can clearly view all disk components with detailed sector layout maps. The command-line terminal lacks this visual clarity, making it difficult to verify disk boundaries instantly. Because terminal adjustments commit immediately, accidental partition deletions cannot be undone.
Better way to extend partitions in Windows Server 2019/2022
Compared to native command lines and graphical tools, professional server partition software options such as NIUBI Partition Editor provide far greater layout flexibility. It can shrink partitions to generate unallocated space on either the left or right boundary seamlessly. It also allows you to move and merge unallocated blocks into non-contiguous partitions on the same hard drive.
Download NIUBI Partition Editor and follow the actions demonstrated in the video guides to adjust drive layouts safely.
How to extend system partition:
How to extend a data partition:
Outperforming generic alternative applications, NIUBI Partition Editor incorporates advanced data protection architectures to safeguard enterprise system layers. It integrates premium safety features to prevent partition damage and database corruption during raw block adjustments:
- Virtual Mode - All planned operations are listed as pending for preview, and real disk partitions will not be modified until you click "Apply" to confirm.
- Cancel-at-will - If you apply incorrect operations, you can safely abort ongoing tasks at any progression step before completion.
- 1-Second Rollback - If any structural exception occurs during boundary reallocation, the software instantly snaps the server back to its original state.
- Hot Clone - Clone system disks or data storage arrays without server downtime, providing an immediately bootable secondary drive if hardware failures occur.
Beyond adjusting partition boundaries and shifting unallocated sectors, this tool provides a comprehensive administrative package for partition copying, filesystem conversion, disk defragmentation, and surface bad sector scanning.
