How to Merge Partitions in Windows Server 2019/2022

If you created too many drives when installing the operating system, you can combine disk drives without reinstalling your system software or active server programs. When a drive storage pool is getting full, you can combine it with another storage area that holds plenty of extra sector blocks. While you can choose to merge C and D drive configurations to increase C drive free space, this setup is generally not recommended for active local server environments. This article introduces both native tools and alternative software options to merge partitions in Windows Server 2019/2022 safely without data loss.

Merge two partitions with Windows Server 2019/2022 Disk Management

In Windows Server 2019/2022 layouts, you can consolidate volume parameters natively under very specific disk topography prerequisites. Microsoft includes no built-in direct action menu choice labeled to merge volumes within the standard graphical snap-in interface. However, the integrated Extend Volume function can be executed to group separate disk sectors together indirectly.

Note: When you choose to combine storage blocks, one of the targeted volumes must be completely removed from the partition map. Ensure you transfer all files to a secondary location before initiating deletions.

Steps to merge partitions in Windows Server 2019/2022 via Disk Management:

1. Right-click the Windows key and X simultaneously on your keyboard, and then launch the integrated Disk Management interface.
2. Right-click your contiguous right-side partition block (such as drive D:) and select Delete Volume to generate unallocated block space.
3. Right-click the target storage drive situated directly on the left contiguous boundary (such as C:) and select Extend Volume.
4. Click Next through the Extend Volume Wizard interface prompts until you select Finish to authorize the block combination.

Reallocating drive allocations natively is relatively straightforward, but the underlying system controller enforces severe structural layout constraints:

1. If application server routines or directory paths link directly to drive D, you cannot remove the volume safely.
2. If your storage environment lacks an alternative backup container to transfer existing files, executing a volume deletion is blocked.
3. The target partition intended to absorb the unallocated space block must be pre-formatted with the NTFS file system architecture.
4. On legacy MBR partition styles, both the drive targeted for expansion and the volume slated for deletion must share identical partition types (either both Primary blocks or both Logical containers).
5. The built-in engine only supports adding space into a left contiguous partition layout. For example, deleting drive E creates unallocated sectors that can only merge into drive D; they cannot skip over boundaries to combine with drive C or drive F.

Combine server partitions with safe partition software

As an industry-leading disk management asset, NIUBI Partition Editor streamlines complex boundary adaptations, sector reallocations, and drive maintenance workflows. Compared to integrated tools, this software provides complete flexibility when you need to merge partitions inside Windows Server 2019/2022/2025 infrastructures:

• The user workflow is highly intuitive, requiring only a few simple clicks within the interface.
• All existing data files stored on the partition marked for deletion are migrated to the target storage block automatically.
• A partition block can safely merge into either its left or right contiguous volume boundary without restriction.
• The reallocating engine operates identically whether processing NTFS or FAT32 filesystems, or combining mixed Primary and Logical partition containers.

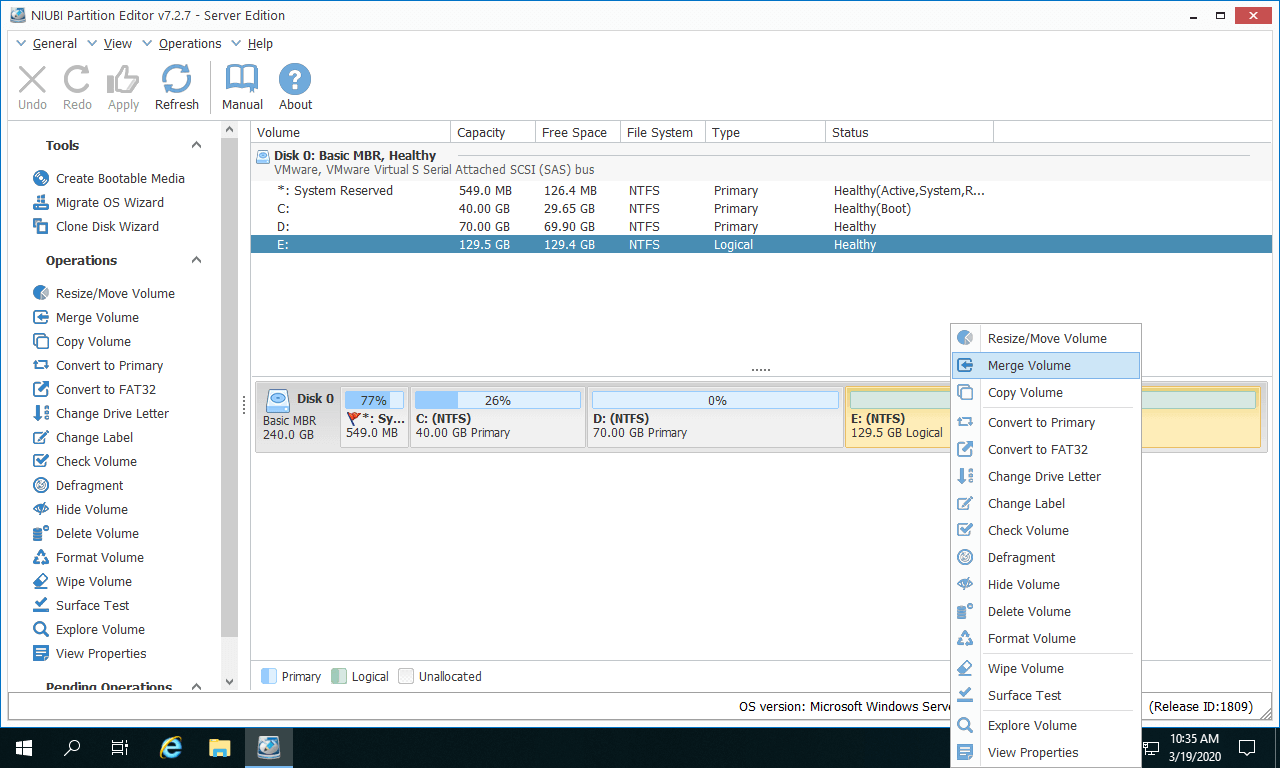

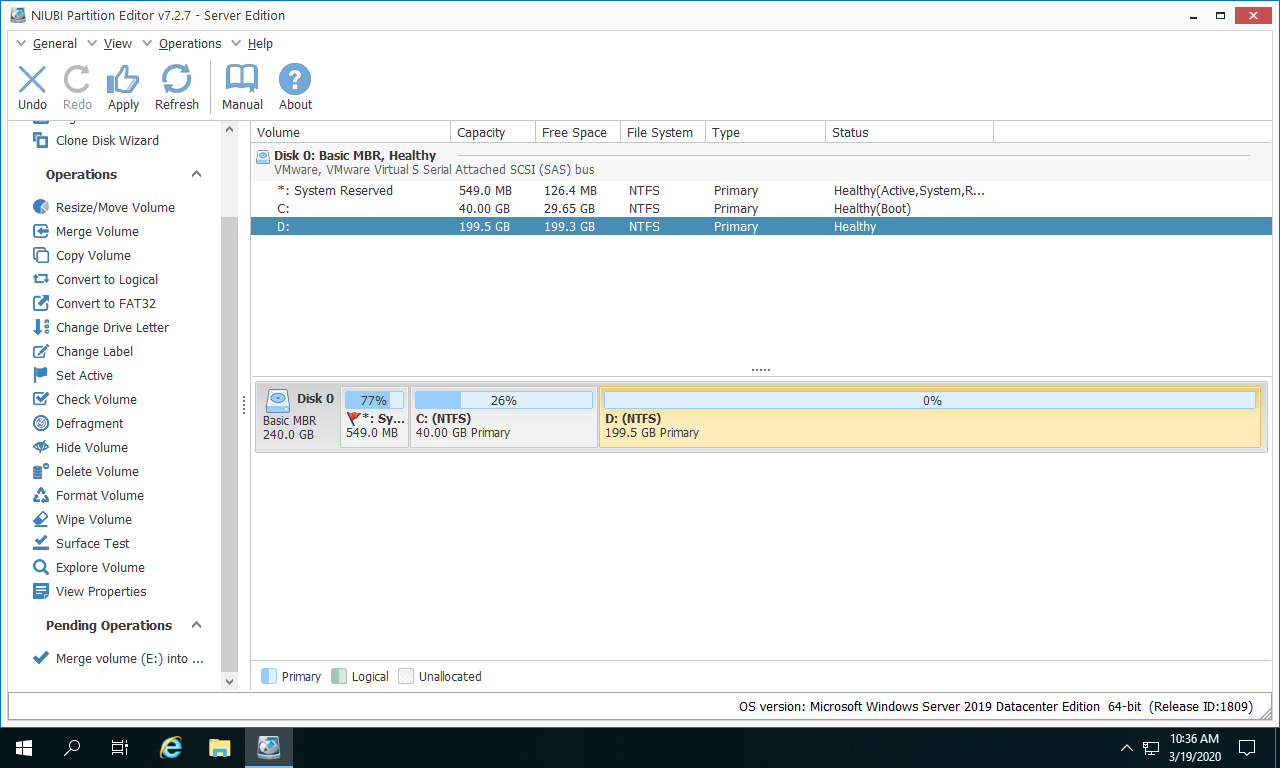

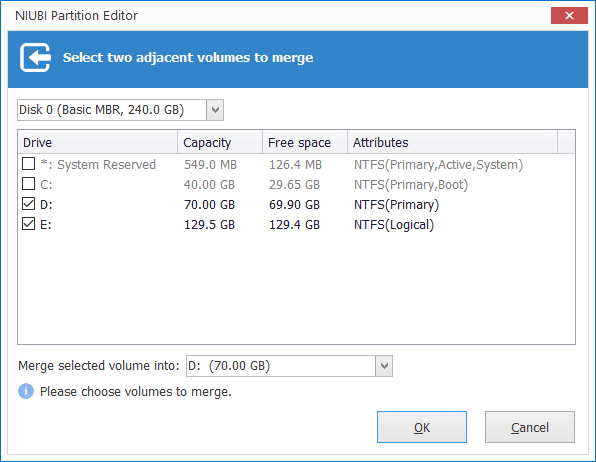

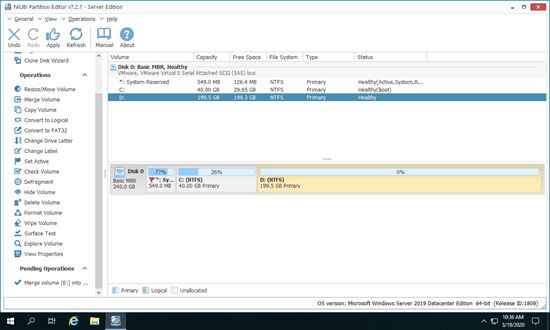

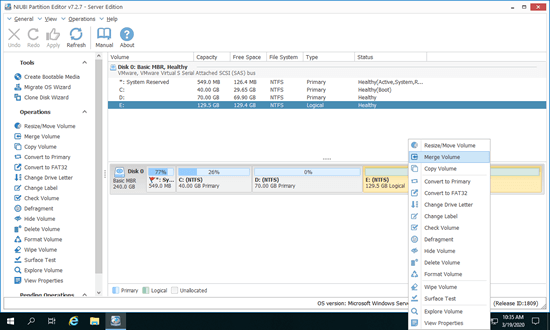

Steps to merge partitions in Windows Server 2019/2022 via NIUBI Partition Editor:

Steps to combine partitions on Windows Server 2019/2022 via video guide:

Better idea than merging disk drives in Windows Server 2019/2022

Whether utilizing native administrative components or third-party partitioning packages to consolidate drives, a core structural disadvantage remains: one of your active volumes must be destroyed. While this data migration strategy is acceptable for auxiliary data pools, choosing to merge D to C drive remains a high-risk operational choice. Because essential application configurations, environmental paths, and Windows services default to drive D, removing this block container will cause installed programs to stop working entirely.

Instead of destroying a volume layout, a superior management choice is to safely shrink the adjacent partition to generate unallocated sectors, and then add Unallocated space to C drive boundaries directly. This advanced reallocation methodology ensures that your underlying operating system, installed business programs, and critical directory settings remain perfectly intact while scaling capacity limits.

Follow the instructions demonstrated in the technical video tutorial to extend C drive in Server 2019 by shrinking other data volume:

Beyond merging volumes across Windows Server 2019, 2022, and 2025 releases, NIUBI Partition Editor provides a comprehensive toolkit for secure volume copying, partition type migration, filesystem conversion, and storage health scanning routines. It incorporates advanced data protection mechanisms, including Virtual Mode, Cancel-at-will, 1-Second Rollback, and Hot-Clone features, alongside an optimized file-moving algorithm to ensure partition management tasks complete safely and efficiently.
